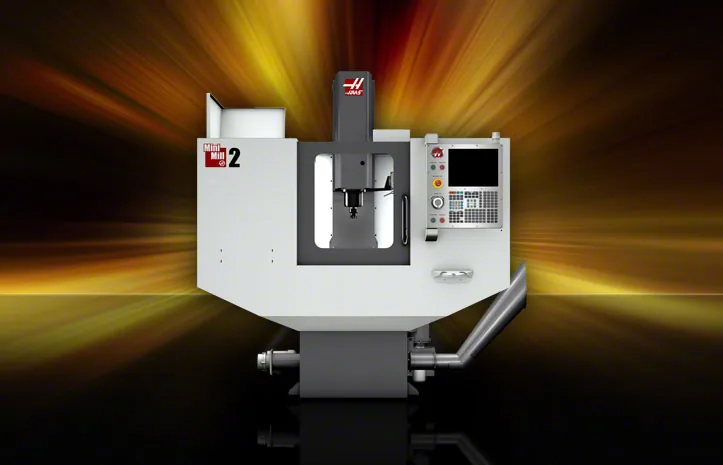

Photo: Haas (manufacturer)

MakeHaas

ModelMini Mill 2

Machine typeVertical Machining Centers

X Axis20" (508 mm)

Y Axis16" (406 mm)

Z Axis14" (356 mm)

Spindle Nose to Table (~ min)4.0" (102 mm)

Spindle Nose to Table (~ max)18.0" (457 mm)

Table — Length40" (1016 mm)

Table — Width14" (356 mm)

T-Slot Width5/8" (16 mm)

T-Slot Center Distance4.9" (125 mm)

Number of Std T-Slots3

Max Weight on Table (evenly distributed)500 lb (227 kg)

Max Rating7.5 hp (5.6 kW)

Max Speed6000 rpm

Max Torque33 ft-lb @ 1200 rpm (45 Nm @ 1200 rpm)

Spindle — TaperCT/40 or BT/40

Rapids on X600 in/min (15.2 m/min)

Rapids on Y600 in/min (15.2 m/min)

Rapids on Z600 in/min (15.2 m/min)

Max Cutting500 in/min (12.7 m/min)

Max Thrust X2000 lb (8896 N)

Max Thrust Y2000 lb (8896 N)

Max Thrust Z2000 lb (8896 N)

Tool Changer — Capacity10

Max Tool Diameter (full)3.5" (89 mm)

Max Tool Weight12 lb (5.4 kg)

Tool Changer — Tool-to-Tool (avg)3.6 sec

Tool Changer — Chip-to-Chip (avg)5.0 sec

Tool Changer (OPT) — Capacity20/24+1

Tool Changer (OPT) — Tool-to-Tool (avg)3.6/2.8 sec

Tool Changer (OPT) — Chip-to-Chip (avg)5.0/3.6 sec

Air Required4 scfm, 100 psi (113 L/min, 6.9 bar)

Coolant Capacity24 gal (91 L)

Machine Weight4000 lb (1814 kg)

Tool-to-Tool (avg) (as published 2016-08)4.2 sec

Coolant Capacity (as published 2016-08)40 gal (151 L)

📋 Spec data: Detailed (35 fields) · compiled from manufacturer and public sources · reference updated 2026-10-15.
Source: Haas Automation, MINIMILL2 Specifications page on haascnc.com, 19 December 2012 (archived copy); Haas Automation, MINIMILL2 Specifications page on haascnc.com, 1 August 2016 (archived copy). These are the manufacturer’s own values for the Mini Mill 2 as Haas published it in December 2012 (rows marked "as published 2016-08": Haas's August 2016 values); machines built earlier or later may differ. These specifications describe the model in general. The year, control generation, spindle, and option package of a specific unit may differ — always verify against the actual machine. Methodology · Data sources.

Haas

Mini Mill 2

Market evidence

Median published asking price$33,700

Middle half of asking prices: $29,125 – $38,375
Distinct asking-price points: 30

Prices by year →Observed records

Published asking prices, not completed sales or appraisals. Year, condition, options and location move the value of an exact machine.

Plan the installInstalled cost →

Machine weight (published)4,000 lb ≈ 1,814 kgFloor & foundation Rigging
Spindle motor rating7.5 hp ≈ 5.6 kWPower planning
Travels X · Y · Z20 · 16 · 14 inFootprint & access

From the published model specification. Spindle rating is not the machine’s total connected load; confirm the exact unit’s data plate and electrical drawings.

Asking prices and estimate for this model →

💰 What's your Haas Mini Mill 2 worth? — get a free number →

About the Haas Mini Mill 2

The Haas Mini Mill 2 is catalogued under Vertical Machining Centers in The Machine Blue Book CNC machine reference library. This entry documents the machine for identification and education; the specifications above are Haas Automation’s own published values (the Mini Mill 2 as Haas published it in December 2012) and describe the model as the manufacturer documented it then, not a specific unit.

Specification sources

Every value above is copied as the manufacturer printed it (inch value first, metric value in brackets when both were printed). A newer document is never used for an older machine. Rows marked “as published <date>” are the values Haas published on that later date where they differ from the first publication; both are shown, neither replaces the other.

Haas Automation, Inc. — MINIMILL2 Specifications (haascnc.com), 19 December 2012 (manufacturer web page, archived copy). Used for: values. Archived copy (web.archive.org).
Haas Automation, Inc. — MINIMILL2 Specifications (haascnc.com), 1 August 2016 (manufacturer web page, archived copy). Used for: values. Archived copy (web.archive.org).
