Reference Library › Turning Centers & Lathes › DS-30SSY

Reference recordMBB·TURNING-CENTERS-LATHES/HAAS-DS-30SSYUpdated 2026-10-15

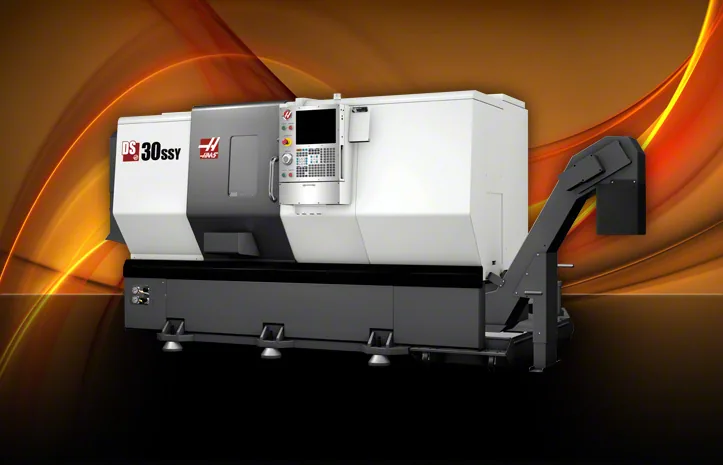

Photo: Haas (manufacturer)

MakeHaas

ModelDS-30SSY

Machine typeTurning Centers & Lathes

Swing Diameter — Over Front Apron31.75" (806 mm)

Swing Diameter — Over Cross Slide20.75" (527 mm)

Swing Diameter — Over Second Spindle21.75" (552 mm)

Capacities — Chuck Size8.3" (210 mm)

Capacities — Max Cutting Diameter16.0" (406 mm)

Capacities — Max Cutting Length23" (584 mm)

Bar Capacity2.0" (51 mm)

X Axis12.5" (318 mm)

Y Axis±2.00" (50.8 mm)

Z Axis23" (584 mm)

Rapids on X472 in/min (12 m/min)

Rapids on Y472 in/min (12 m/min)

Rapids on Z1200 in/min (30.5 m/min)

Max Thrust X4100 lb (18238 N)

Max Thrust Y2300 lb (10231 N)

Max Thrust Z4050 lb (18015 N)

Spindle — Max Rating30 hp (22.4 kW)

Spindle — Max Speed4800 rpm

Spindle — Max Torque275 ft-lb @ 600 rpm (373 Nm @ 600 rpm)

Spindle — Spindle NoseA2-6

Spindle — Spindle Bore ø3.50" (88.9 mm)

Main Spindle C Axis — Max Rating5 hp (3.7 kW)

Main Spindle C Axis — Positioning (±)0.01 °

Main Spindle C Axis — Brake Clamp Force1000 lb (4448 N)

Main Spindle C Axis — Brake Diameter14.4" (366 mm)

Secondary Spindle — Max Rating20 hp (14.9 kW)

Secondary Spindle — Max Speed4800 rpm

Secondary Spindle — Max Torque110 ft-lb @ 700 rpm (149 Nm @ 700 rpm)

Secondary Spindle — Spindle NoseA2-5

Secondary Spindle — Chuck Size8.3" (210 mm)

Secondary Spindle — Max Cutting Diameter18" (457 mm)

Secondary Spindle — Max Cutting Length23" (584 mm)

Secondary Spindle — Spindle Bore ø2.44" (61.9 mm)

Secondary Spindle Positioning — Brake Clamp Force500 lb (2224 N)

Secondary Spindle Positioning — Brake Diameter7" (178 mm)

Number of Tools24

OD vs ID Tools12 VDI /12 BOT

Tool Size (OD turning)1.0" (25 mm)

Index Time (one tool)1 sec

Boring Bar Rear Clearance (from turret face)8.5" (216 mm)

Live Tooling — Max Speed0-3000 rpm

Live Tooling — Torque (peak)195 in-lb (22.03 Nm)

Live Tooling — Torque (continuous)75 in-lb (8.47 Nm)

Live Tooling — Brake Clamp Force1000 lb (4448 N)

Live Tooling — Brake Diameter13.25" (336.6 mm)

Live Tooling — ToolingVDI40

Air Required4 scfm, 100 psi (113 L/min, 6.9 bar)

Coolant Capacity55 gal (208 L)

Machine Weight14600 lb (6623 kg)

Boring Bar Rear Clearance (from back of turret) (as published 2016-08)4.0" (102 mm)

Live Tooling — Max Speed (as published 2016-08)6000 rpm

📋 Spec data: Detailed (51 fields) · compiled from manufacturer and public sources · reference updated 2026-10-15.
Source: Haas Automation, DS-30SSY Specifications page on haascnc.com, 5 February 2013 (archived copy); Haas Automation, DS-30SSY Specifications page on haascnc.com, 1 August 2016 (archived copy). These are the manufacturer’s own values for the DS-30SSY as Haas published it in February 2013 (rows marked "as published 2016-08": Haas's August 2016 values); machines built earlier or later may differ. These specifications describe the model in general. The year, control generation, spindle, and option package of a specific unit may differ — always verify against the actual machine. Methodology · Data sources.

Haas

DS-30SSY

Evidence updated 15 October 2026: asking-price records. How evidence is dated

Market evidence

Median published asking price$99,000

Middle half of asking prices: $89,950 – $109,900
Distinct asking-price points: 15

Prices by year →Observed records

Published asking prices, not completed sales or appraisals. Year, condition, options and location move the value of an exact machine.

Plan the installInstalled cost →

Machine weight (published)14,600 lb ≈ 6,622 kgFloor & foundation Rigging

From the published model specification. Spindle rating is not the machine’s total connected load; confirm the exact unit’s data plate and electrical drawings.

Asking prices and estimate for this model →

💰 What's your Haas DS-30SSY worth? — get a free number →

About the Haas DS-30SSY

The Haas DS-30SSY is catalogued under Turning Centers & Lathes in The Machine Blue Book CNC machine reference library. This entry documents the machine for identification and education; the specifications above are Haas Automation’s own published values (the DS-30SSY as Haas published it in February 2013) and describe the model as the manufacturer documented it then, not a specific unit.

Specification sources

Every value above is copied as the manufacturer printed it (inch value first, metric value in brackets when both were printed). A newer document is never used for an older machine. Rows marked “as published <date>” are the values Haas published on that later date where they differ from the first publication; both are shown, neither replaces the other.

Haas Automation, Inc. — DS-30SSY Specifications (haascnc.com), 5 February 2013 (manufacturer web page, archived copy). Used for: values. Archived copy (web.archive.org).
Haas Automation, Inc. — DS-30SSY Specifications (haascnc.com), 1 August 2016 (manufacturer web page, archived copy). Used for: values. Archived copy (web.archive.org).
