Reference Library › Grinding › HELITRONIC VISION 400 L
Walter

HELITRONIC VISION 400 L

📚 Educational reference — no pricing, not for sale. Independent used-machine research and seller-source discovery are available in our market directory.
💰 What's your Walter HELITRONIC VISION 400 L worth? — get a free number →
Walter HELITRONIC VISION 400 L

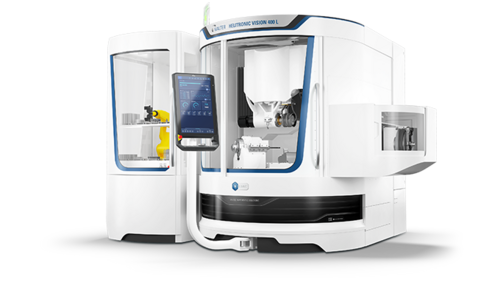

Photo: Walter (manufacturer)
MakeWalter
ModelHELITRONIC VISION 400 L
Machine typeGrinding
Max. Travel X500 mm
Max. Travel Speed X50.000 mm/min
Max. Travel Y350 mm
Max. Travel Speed Y50.000 mm/min
Max. Travel Z700 mm
Max. Travel Speed Z50.000 mm/min
Max. Spindle Power30 kW
Max. Number Of Revolutions7.800 / 10.000 /min
Max. Grinding Wheel Diameter254 mm
Workpiece Length420 mm
Workpiece Diameter3 - 315 mm
Max. Workpiece Weight50 kg
Motor spindle — Max. Travel X500 mm
Workpiece Data — Max. Travel X19.69 inch
Motor spindle — Max. Travel Speed X50.000 mm/min
Workpiece Data — Max. Travel Speed X1,969 inch/min
📋 Spec data: Detailed (30 fields) · compiled from manufacturer and public sources · reference updated 2026-09-24.
These specifications describe the model in general. The year, control generation, spindle, and option package of a specific unit may differ — always verify against the actual machine. Methodology · Data sources.

About the Walter HELITRONIC VISION 400 L

The Walter HELITRONIC VISION 400 L is catalogued under Grinding in The Machine Blue Book CNC machine reference library. This entry documents the machine for identification and education; specifications above are compiled from manufacturer and public sources and describe the model, not a specific unit.

Used market research

Research Walter HELITRONIC VISION 400 L in the used-machine market directory → — review current and historical seller-source records, then verify availability directly with the originating source.
