Reference Library › Grinding › HELITRONIC G 200
Walter

HELITRONIC G 200

📚 Educational reference — no pricing, not for sale. Independent used-machine research and seller-source discovery are available in our market directory.
💰 What's your Walter HELITRONIC G 200 worth? — get a free number →
Walter HELITRONIC G 200

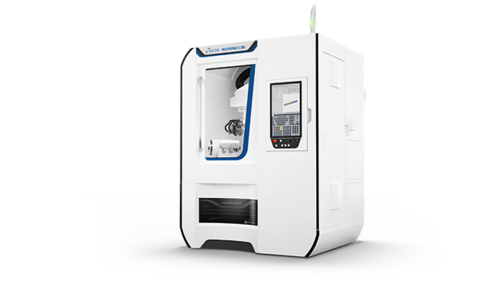

Photo: Walter (manufacturer)
MakeWalter
ModelHELITRONIC G 200
Machine typeGrinding
Max. Travel X305 mm
Max. Travel Speed X15'000 mm/min
Max. Travel Y218 mm
Max. Travel Speed Y15'000 mm/min
Max. Travel Z475 mm
Max. Travel Speed Z15'000 mm/min
Max. Spindle Power9 kW
Max. Number Of Revolutions10.500 /min
Max. Grinding Wheel Diameter150 mm
Workpiece Length195 / 235 mm
Workpiece Diameter1 (3) - 16 (125) mm
Max. Workpiece Weight12 kg
"Top loader" option — Max. Tra305 mm
Workpiece Data — Max. Travel X12.01 inch
"Top loader" option — Max. Tra15'000 mm/min
Workpiece Data — Max. Travel Speed X591 inch/min
📋 Spec data: Detailed (30 fields) · compiled from manufacturer and public sources · reference updated 2026-09-24.
These specifications describe the model in general. The year, control generation, spindle, and option package of a specific unit may differ — always verify against the actual machine. Methodology · Data sources.

About the Walter HELITRONIC G 200

The Walter HELITRONIC G 200 is catalogued under Grinding in The Machine Blue Book CNC machine reference library. This entry documents the machine for identification and education; specifications above are compiled from manufacturer and public sources and describe the model, not a specific unit.
