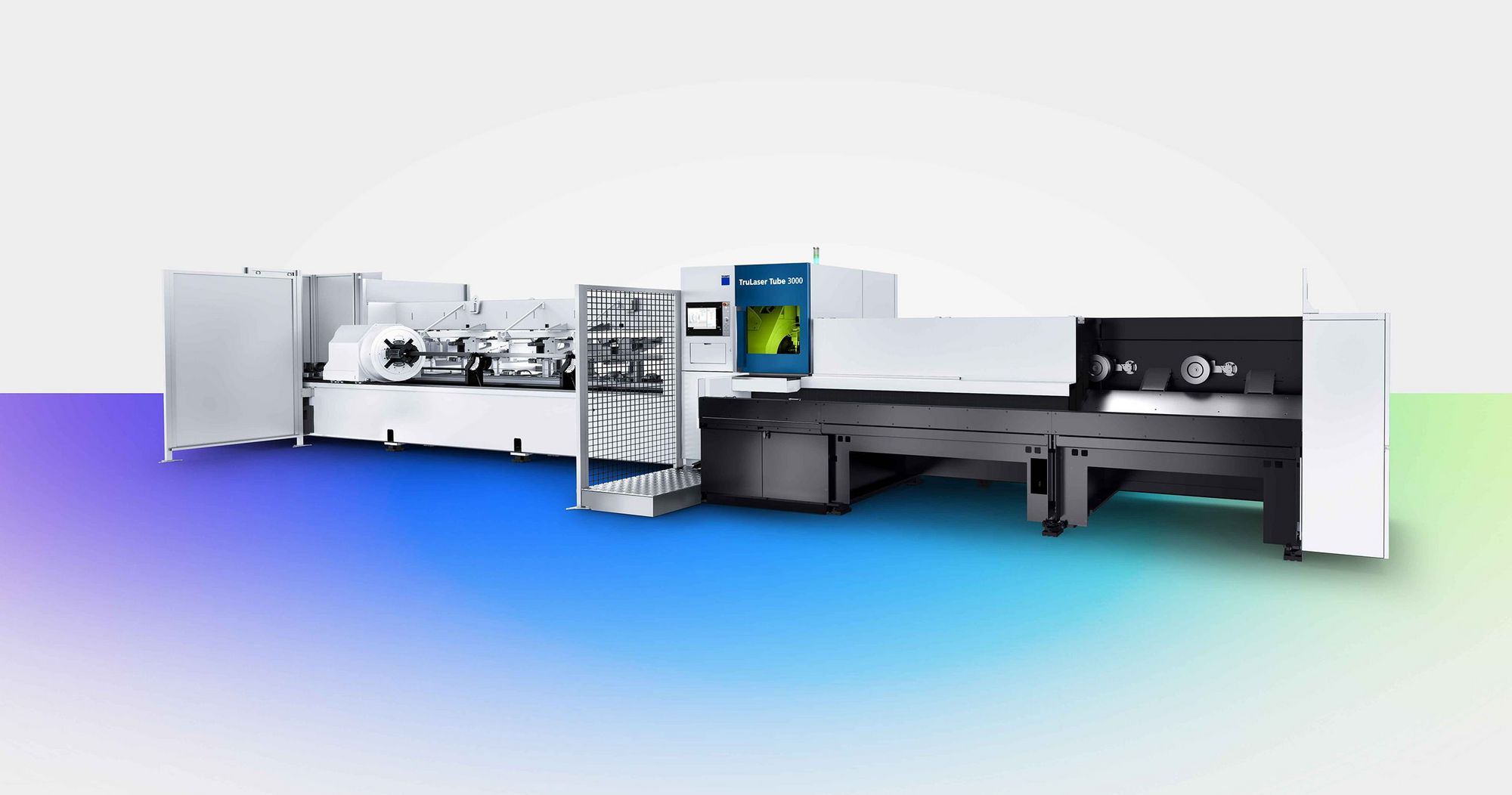

ModelTruLaser Tube 3000
Maximum outside diameter152 mm
Maximum outside diameter (optional)170 mm 1
Maximum side length and outer circle dia152 mm / 170 mm
for LoadMaster Tube 6.5 m6500 mm
for LoadMaster Tube 8.0 m8000 mm 2
for unloading unit 3 m3000 mm
for unloading unit 4.75 m4750 mm
for unloading unit 6.5 m-
for unloading unit 8 m8000 mm
Maximum path weight (standard/optional)18.5 kg/m
with LoadMaster Tube 6.5 m120 kg
with LoadMaster Tube 8.0 m148 kg
Maximum laser power2000 W
Maximum material thickness, mild steel8 mm
Maximum material thickness, stainless st4 mm
Maximum material thickness, aluminum4 mm
