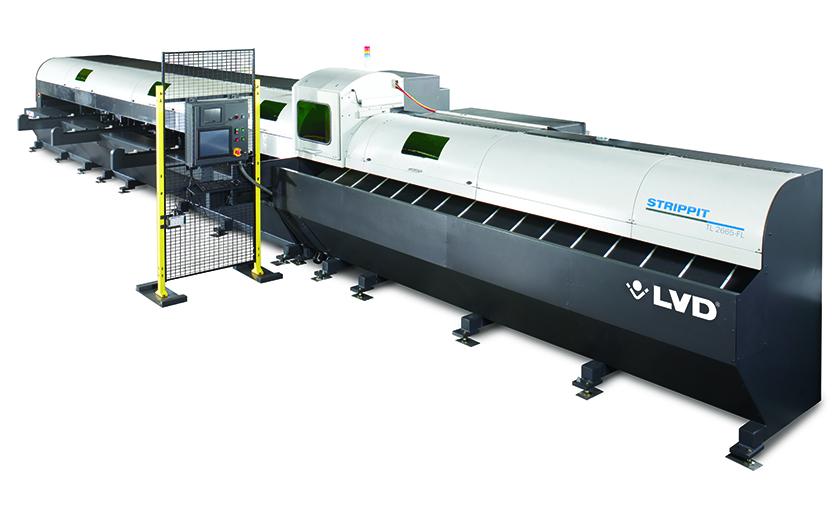

ModelTL 2665
MaterialSteel, stainless steel, aluminium, copper, brass
Tube typeRound, rectangle, square, ob-round
Outside diameter/ DiagonalRound: 19 x 165 mm
-Square: maximum 127 x 127 mm
Maximum raw material length8000 mm
Maximum part length4800 mm
Maximum tube weight32.7 kg/m
Feed stagesX-axis: 152 mm - 30 m/min
Technical data — -Y-axis: 152 mm - 30 m/min
AccuracyCut to length - minimum +/- 0.1 mm or +/- 0.05 mm per 300 mm
Rack & pinionSplit pinion linear rack system
Rotary speed120 rotations/min
Linear speed127 m/min
Stand-Off DistanceAutomatic
Front tube loader7-position magazine loader reversible
Tube length measurementLeading edge detection
