Agie Charmilles WorkPartner 1+
'">

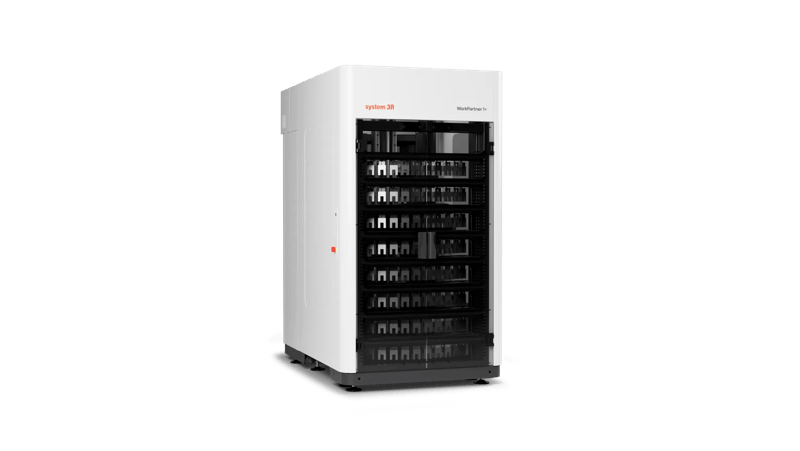

Photo: Agie Charmilles (manufacturer)
MakeAgie Charmilles
ModelWorkPartner 1+
Machine typeOther Machines
Transfer weight*Up to 100 kg (220 lbs.) Includes pallet with workpiece
Max. X-reach1244 mm (49 in). Two magazine version
Max. Z-reach1500 mm (59 in)
Max. C-rotation330°
Required air pressure6 ± 1 bar, 150 litres/minute
Power supply (Japan)3x200 VAC
Power supply (North America)3x480 VAC
Power supply (Europe)3x400 VAC
Power consumptionMax 20A@3x200 VAC or 20A@3x400VAC
Frequency50/60 Hz ± 1%
External fuse20 Ampere, characteristic type D
InterfaceRS-232, 24 V I/0 (Various) Industrial Field Buses
Double emergency stopYes
Pallet systems in the LIGHT magazineNo of levels
Macro 54/708
Macro PT (70x70)8

About the Agie Charmilles WorkPartner 1+

The Agie Charmilles WorkPartner 1+ is catalogued under Other Machines in The Machine Blue Book reference library. This entry documents the machine for identification and education; specifications above are compiled from manufacturer sources.
